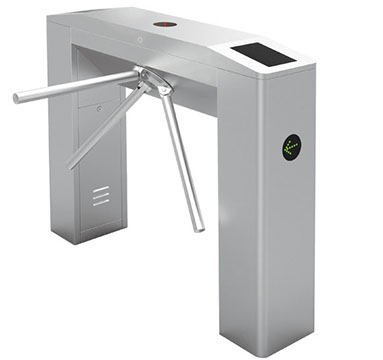

SEMI AUTOMATIC TRIPOD TURNSTILE

TTS350L is an electro mechanical turnstile. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor. This semi automatic design allows TTS350L to be more economical. Sturdy rock solid internal mechanical parts design maximize its durability for industrial usage. Spare parts is available locally to reduce down time.

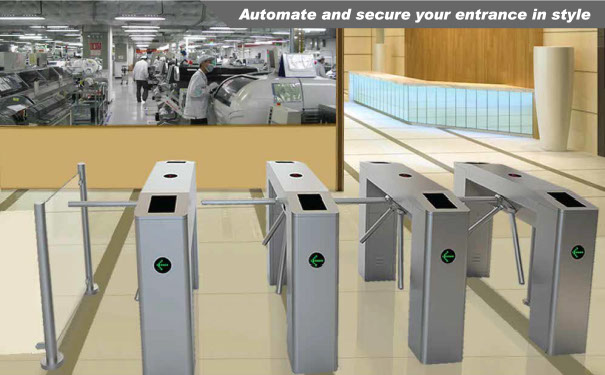

TTS350L series can effectively control high volume human traffic (up to 25 person per minutes) while still maintaining a welcoming atmosphere. They can easily be integrated with any electronic system for ticketing, access control or time attendance. TTS350L series is suitable for indoor. They are optimized economical solution for railway, bus station, factory, colleges, commercial building, library, stadium, game park, bank and etc.

1. Easy Maintenance

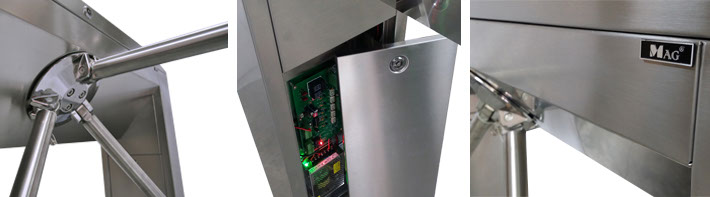

Common parts are modular and can be easily changed by simply removing screws. Top cover can be opened for full access into internal mechanism during servicing. Regular wear and tear parts can be purchased to keep stock for faster replacement

2. Semi Auto Rotation

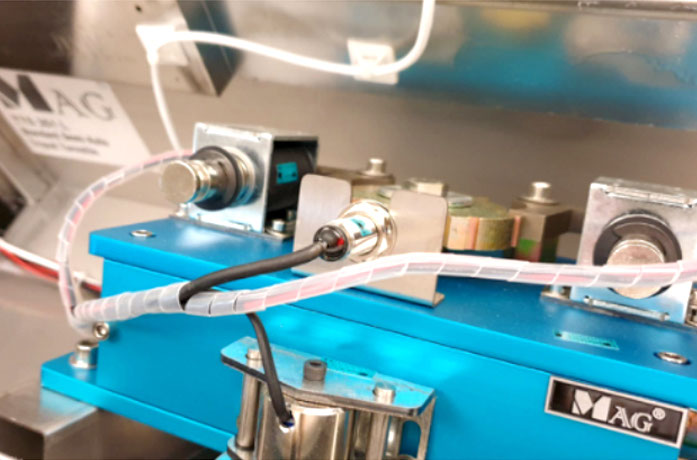

Its unique mechanical drive design allow the arm to be pushed effortlessly and auto-rotate back without any expensive electric motor. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position. Adjustable absorber controls rotation force to minimize loud sound and avoid over rotation.

3. Anti Tailgating

Smart lock mechanism effectively allow only one person to pass through at a time. Arm will automatically relock back if nobody pass through after a preset delay time.

4. User Friendly

LED at top cover indicates approved entry direction after flash card. LED at each leg indicate if the lane is available or closed down for servicing. During power failure, arm will drop automatically allowing free pass through. Arm is manually lifted up back to position after power resumed.

5. Easy Integration

Turnstile is triggered to open via dry contact relay output for bi-directional or unidirectional entry. RFID reader can be easily installed underneath side black acrylic. Top cover and and side leg can be opened to install external devices.
