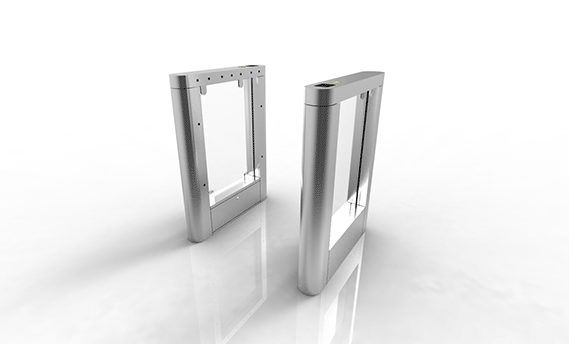

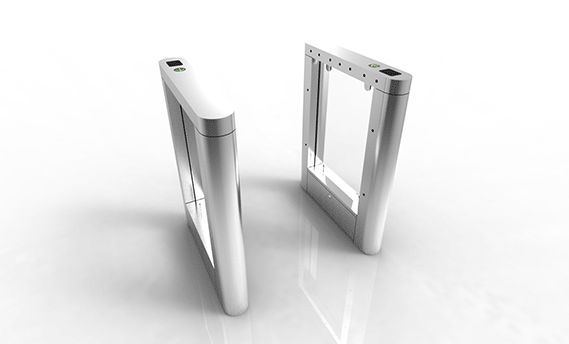

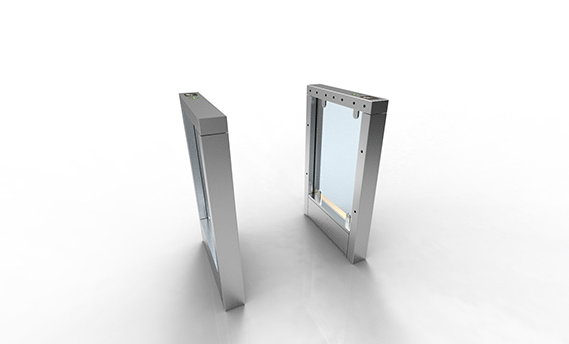

LUMINOUS BARRIER

HOME > PRODUCTS > LUMINOUS BARRIER

FEATURES

  • Fast pass throughput without obstruction of moving panels



  • Small foot-print, suitable for space constraint lobby and space



  • Anti-intrusion function, when the gate signal is not received, Alarm will sound, and LED will illuminate to bring attention



  • Compatible with a most reader device, integrate via dry contact signal



  • Unidirectional or bidirectional control of personnel access



  • Safe to Use



  • Fast evacuation during emergency

Model: NW-LM-01

Size: 1200 x 100 x 950mm

TECHNICAL SPECIFICATIONS

Power voltage

AC220±10%, 50Hz

Drive voltage

AC12V + AC18V

Operation condition

-15ºC ~ +60ºC

Relative humidity

None-condensation

Input signal

12v DC level or 12v pulse>100ms

Working current

≤2000mA

Panel Material

Tempered glass

Service life

≥5 million

Pass speed

≤40-45person/minute

Structure

304 Stainless Steel/Powder Coated

Open direction

Single and Bi-Directional (optional)

Work environment

Outdoor and indoor

IP Degree

IP54

Width of Passage

600-900mm
