DUAL LANE FULL HEIGHT TURNSTILES

FEATURES

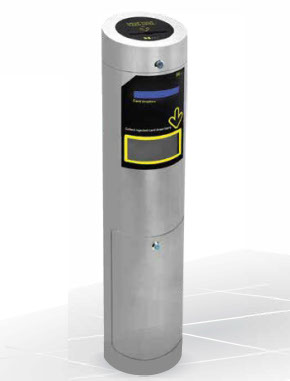

DBX100 is a dropbox type card collector. User can drop their visitor card into the dropbox to gain access for exit or entry. DBX100 can be integrated with card access control reader.

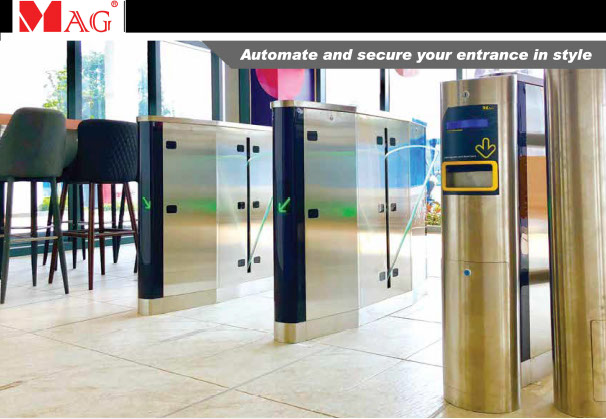

DBX100 slim and small profile makes it easier to be used side by side with other pedestrian gate and building entrance. m



DBX100 design is simplified to achieve highly affordable solution for ticketing and visitor management system.



1.  Collector Card and Reuse

Can support maximum card width up to 10cm. DBX100 can take in entire card with card holder and pin clip.



2. Integrated with VMS and Access Control

Any proximity reader can be installed inside the dropbox. Access reader just needs to provide dry contact output to trigger dropbox to accept the card. Valid visitor card will be accepted into collection bin and open the gate when you integrate with your access control system. Invalid visitor card will be falls out to exit tray at front.



3. User Friendly and Easy Operation

Green light indicates the card is valid and card fall in collection box. Red light when fully occupied and the card will be rejected and falls out to exit tray in front.



4. Easy Maintenance

Top cover can be opened by key. Entire machine core can be taken out easily for servicing or installing reader. Bottom door can be opened by key to take out collection bin once it is full. Once collection bin is full, all cards (valid/invalid) card will fall out to the exit tray. DBX100 will not accept any more cards until the collection bin is cleared.
